Preventing DDoS Attacks

Preventing DDoS Attacks

DDOS, or Distributed Denial of Service is an advanced version of DOS (Denial of Service) attack. Like DOS, DDOS also tries to deny important services running on a server by broadcasting packets to the destination server in a way that the Destination server cannot handle it. The speciality of the DDOS is that, it relays attacks not from a single network/host like DOS. The DDOS attack will be launched from different dynamic networks which has already been compromised.

There is no 100% perfect solution for DDOS. We can just prevent it to certain extend by securing our networks and servers. However, in our web server management services, we’ve been able to prevent a vast majority of DDoS attacks just using open source tools. Today, I’ll go through how we did it.

Normally, DDOS consists of 3 parts . The Master, the slave and at last the victim. The master is the attack launcher, i.e the person/machine behind all this. The slave is the network that is being compromised by the Master and Victim is the target site/server. Master informs the compromised machines, so called slaves to launch attack on the victim’s site/machine. Hence its also called co-ordinated attack.

Here is how I see it. Master is the Master Brain, Slave is said to be the launch pad for the attack and Victim is the target.

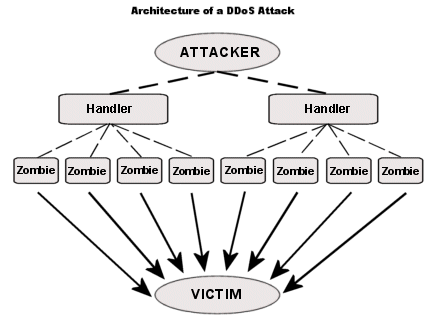

denial of service attack

Master (marked as Attacker and Handler) controls the slaves (marked as Zombies) co-ordinate the attack against the Victim.



DDOS is done in 2 phases. In the first phase they try to compromise weak machines in different networks around the world. This phase is called Intrusion Phase. Its in the next phase, that they install DDOS tools and start attacking the victims machines/site. This Phase is called Distributed DoS attack phase.

What Allowed them to do it? Simple.

  1. Vulnerable software/Applications running on a machine or network.
  2. Open network setup.
  3. Network/ machine setup without taking security into account.
  4. No monitoring or Data Analysis are being conducted.
  5. No regular Audit / Software upgrades being conducted.



What should we do if we are under DDOS attack?



Check if your machine’s load is high and you have large number of HTTP process running.

To find the load just use the command w or uptime

# w
12:00:36 up 1 day, 20:27, 5 users, load average: 0.70, 0.70, 0.57

To find if there is large number of HTTP process running use the command:

# ps -aux | grep HTTP | wc -l

23

In a heavy server , the number of connections will go above 100. But during DDOS attack, the number will go even higher and that’s when we need to find out from which all networks are these attacks coming. In DDOS the host machine doesn’t have much importance. Its the network which is of importance here because, an attacker will use any machine on the compromised network or even will use all the machines in the network. Hence network address is of importance while fighting with the attack.



If you have high load (say 5 or more ) and you have large number of HTTP process then do the following:

At command prompt execute the below command

netstat -lpn | grep :80 | awk '{print $5}' | sort

Check each block of IPs. Lets assume you have more than 30 connection from a single IP. Under normal cases there is no need for that many number of connection requests from a single IP. Try to identify such IPs/networks from the list you get.

If more than 5 hosts/IPs connect from the same network then it’s a clear sign of DDOS.

Block those IPs/networks using iptables/APF

iptables -A INPUT -s  -j DROP

If you have APF, then just add the IPs which you want to block in the file /etc/apf/deny_hosts.rules

Continue this process until the attack on the machine gets reduced. There is no complete or perfect solution to DDOS . The logic is simple, NO software or measures could handle attacks from multiple servers say from 50 – 100 servers all at a time. All that can be done is to take preventive measures.

UPDATE : Here’s more on how to detect DDOS attacks.



How can we prevent or defend ourselves from these attacks?

Prevention is better than cure. Its very much true in the case of DDOS . In my Introduction, I had mentioned that DDOS happens because of vulnerable softwares/applications running on a machines in a particular network. Attackers use those security holes to compromise the servers in different network and install the DDOS tools (eg trinoo -DDOS tool). To prevent DDOS in future, follow these steps.

Setup machine / network keeping security in mind (Implement Good Security policy)

Setup a firewall which does Ingress and Egress Filtering at Gateway

Steps to Install APF

# wget http://www.rfxnetworks.com/downloads/apf-current.tar.gz
# tar -zxf apf-current.tar.gz
# cd apf-
# ./install.sh

Notes: Go through the Document in the Apf and configure it for your needs. All configuration is set at conf.apf which is normally located at /etc/apf/conf.apf

Enable Anit-DOS mode in Apf (ie in conf.apf) . Also make sure that your root’s cron has an entry like the one below

*/8 * * * * root /etc/apf/ad/antidos -a >>
/dev/null 2>&1

Install IDS on your gateway/hosts to alert you when someone tries to sniff In.

(a) Wget ftp://ftp.cs.tut.fi/pub/src/gnu/aide-0.7.tar.gz

(b) Untar it

tar -zxvf aide-0.7.tar.gz
cd aide-0.7

(d) Then execute

./configure -with-gnu-regexp

(e) Final steps to install

make;make install

(f) Now the main step. To configure AIDE. AIDE stores all its rule sets in the file called aide.conf. To get more details on how to configure from ‘man aide.conf’

(g) Here is a sample short aide.conf:

Rule = p+i+u+g+n+s+md5
/etc p+i+u+g
/sbin Rule
/usr/local/apache/conf Rule
/var Rule
!/var/spool/.*
!/var/log/.*

In this configuration, a rule called “Rule” is set to check permissions (p), inode (i), user (u), group (g), number of links (n), size (s), and md5 checksum (md5). This rules are applied to all files in /bin, /sbin, /var, and /usr/local/apache/conf because they should rarely if ever change. Files in /etc are checked for changes in only permissions, inode, user, and group because their size may change, but other things shouldn’t. Files and directories in /var/spool and /var/log are not checked because those are folders where maximum updation takes place.

(h) After configuring AIDE should be initiated with all these rules.

For that execute

aide -init



Conduct regular Audits on each host on the network to find installation of DDOS tools / Vulnerable applications.

Use tools like RKDET, RKHUNTER and CHKROOTKIT to find if any rootkit has been already installed and to locate the effected binaries in the machine, if any.

This is a simple Audit check List to check for.

  • Software Vulnerabilities.
  • Kernel Upgrades and vulnerabilities.
  • Check for any Trojans.
  • Run chkrootkit.
  • Check ports.
  • Check for any hidden processes.
  • Use audit tools to check system.
  • Check logs.
  • Check binaries and RPMS.
  • Check for open email relays.
  • Check for malicious cron entries.
  • Check /dev /tmp /var directories.
  • Check whether backups are maintained.
  • Check for unwanted users, groups, etc. on the system.
  • Check for and disable any unneeded services.
  • Locate malicious scripts.
  • Querylog in DNS.
  • Check for the suid scripts and nouser scripts.
  • Check valid scripts in /tmp.
  • Use intrusion detection tools.
  • Check the system performance.
  • Check memory performance (run memtest).



Enforce and Implement Security Measures on all hosts in the network.

Machines new or old should only be allowed to run on your network, if your Security Admin or DSE (Dedicated Security Expert) member approves it with status “OK-to go live” after auditing the box. All Host in the network should be checked on a regular basis by your DSE team to make sure that all hosts are up-to-date and can fight any attacks.

Audit network on a regular basis to see if your network is vulnerable to attacks

Use Open Source Tools like NESSUS, NMAP, SAINT, SARA for auditing a network to find its vulnerabilities.

Create a DSE (Dedicated Security Expert ) Team for your company.

Collect your network and hosts data. Analyse and study them to see from where and what kind of attacks are coming into the network. This step will help us to understand what kind of attacks we are facing and will help us to strengthen the preventive measures. Let me tell you this move is worth the money you spend, for sure.

Implement Sysctl protection against DDOS

# vi /etc/sysctl.conf

Add this code to this file:

# Enable IP spoofing protection, turn on Source Address Verification
net.ipv4.conf.all.rp_filter = 1
# Enable TCP SYN Cookie Protection
net.ipv4.tcp_syncookies = 1
Add the below code in /etc/rc.local and restart network
for f in /proc/sys/net/ipv4/conf/*/rp_filter;
do echo 1 > done
echo 1 > /proc/sys/net/ipv4/tcp_syncookies



Install Mod_evasive to your Apache

Mod_dosevasive is module for Apache to perform evasive action in the event of an HTTP DDoS attack or brute force attack. Please find the installation step of mod_evasive in DSO mode below

Eg: Install Mod_evasive

# wget http://www.nuclearelephant.com/projects/mod_evasive/mod_evasive_1.10.1.tar.gz
# tar -zxvf mod_evasive_1.10.1.tar.gz
# cd mod_evasive_1.10.1
# $APACHE_ROOT/bin/apxs -iac mod_evasive.c

“$APACHE_ROOT” is a variable that stores the location of the apache installation (eg $APACHE_ROOT =/usr/local/apache)

# vi /usr/loca/apache/conf/httpd.conf

After this add the below code in httpd.conf

DOSHashTableSize 3097
DOSPageCount 2
DOSSiteCount 50
DOSPageInterval 1
DOSSiteInterval 1
DOSBlockingPeriod 10

Then restart Apache

# /usr/local/apache/bin/apachectl restart

UPDATE : Here’s how you can secure Litespeed server against DDOS.



Install Mod_security

Since DDOS normally targets HTTP. Its always good to have a filtering system for apache . So that the request gets analyzed before web server handles it. Please find the installation step of mod_security in DSO mode below

# http://www.modsecurity.org/download/modsecurity-apache-1.9.2.tar.gz
# tar -zxvf modsecurity-apache-1.9.2.tar.gz
# cd modsecurity-apache-1.9.2
# /usr/local/apache/bin/apxs -cia mod_security.c

Create a file named mod_security.conf under the folder /usr/local/apache/conf

# vi /usr/local/apache/conf/mod_security.conf

Create the rule with reference to the link http://www.modsecurity.org/documentation/quick-examples.html and add it in the mod_security.conf file.

Add the location of mod_security.conf to httpd.conf

# vi /usr/local/apache/conf/httpd.conf

by adding the string below

Include /usr/local/apache/conf/mod_security.conf

Restart apache

# /usr/local/apache/bin/apachectl stop
# /usr/local/apache/bin/apachectl start

Best solution to fight DDOS to a certain extend will be to setup load balancer for your services.

UPDATE : Here are a few tips on load balancing:

  1. Introduction to load balancing.
  2. Load balancing using Linux Virtual Server.
  3. Load balancing in Litespeed servers.



Creating awareness on Security

This is the most important part. People, including users should be Security conscious. Only then will they understand the importance of Security measures . Server owner’s and users should be made aware of the issues which can rise due to bad security measures.

NOTE: This article was originally published on March 12th, 2006, and was revised on September 11th 2015.




About the author:
Blessen Cherian works in Bobcares. He is passionate about Server Security and looks forward to gain expertise in this area.




Bobcares server administrators routinely help webmasters and service providers secure and optimize their web server infrastructure. Our server management services cover 24/7 monitoring, emergency administration, periodic security hardening, periodic performance tuning and server updates.

SEE HOW YOU CAN KEEP YOUR SERVERS HARDENED AND SECURE




2 Comments

  1. If you are using APF and your box having a heavy DOS attack , you will be lock down with following errors.

    ip_conntrack: table full, dropping packet.

    For avoiding this you need to change the CONNTRACK value in /etc/apf/conf.apf to which at least 10 times greater than your RAM.

    BipinDas.

  2. Great article. Also found this other article for users who are not able to stop attacks using the techniques described above.
    http[:]//knol.google.com/k/ddos-mitigation-techniques-state-of-the-art#
