NGINX Reverse Proxy Raspberry Pi Setup Guide

PDF Header PDF Footer

Learn how to configure a reverse proxy using Raspberry Pi in this NGINX reverse proxy Raspberry Pi setup guide. Our NGINX Support team is ready to assist you.

NGINX Reverse Proxy Raspberry Pi Setup Guide

Installing a smart server at home may enhance the speed, security, and accessibility of your apps. With the help of this guide, you could turn your Raspberry Pi into a strong gateway that can process web requests. To understand the entire setup process step-by-step, read the entire article.

What is NGINX?

Nginx is an open-source, high-performance web server that functions as a cache, load balancer, and reverse proxy. It efficiently distributes traffic to backend servers, delivers static content, increases security, and speeds up caching. Nginx is perfect for creating reliable,scalable, and quick online apps and APIs.

Benefits of Using NGINX on Raspberry Pi

  • NGINX operates effectively on the Raspberry Pi, consuming very little CPU and RAM, making it ideal for its limited hardware.
  • It’s perfect for asset delivery or static webpages because it can provide static files rapidly.
  • The event-driven architecture of NGINX enhances the Pi’s features by managing several connections with ease.
  • To increase speed and reliability, distribute traffic and forward requests to backend services.
  • Enables your Raspberry Pi setup to expand with your needs by seamlessly integrating into larger systems.

Check out our expert article to learn how the NGINX proxy_redirect directive works and when to use it.

Hardware and Software Requirements

NGINX is an effective, lightweight technology that may be used as a load balancer, web server, reverse proxy, and cache. It is simple to set up because it requires only the most minimal hardware and software requirements.

Hardware requirements:

  • CPU: A simple quad-core processor that supports SSE4.2, such as an AMD or Intel processor, performs admirably.
  • RAM: 512MB is a good minimum, although more is preferable for caching or high traffic.
  • Disk Space: NGINX doesn’t require a lot of space, although files, logs, and cache require room.

Software requirements:

  • Operating systems include Windows, macOS, FreeBSD, and Linux (such as Ubuntu, Debian, and CentOS).
  • Compatible distributions include RHEL, Ubuntu, SUSE, Rocky Linux, and others.

Additional Software (If Required):

  • Clang or GCC: For source compilation.
  • FFmpeg: Required for RTMP video streaming.
  • Node.js: Necessary for utilizing Node.js applications with NGINX Unit.

Understanding Reverse Proxy with NGINX

Serving as a reverse proxy, NGINX processes requests on behalf of backend servers by occupying the space in front of them. It starts by listening on ports such as 80 or 443. It then routes incoming requests to the appropriate backend server in accordance with the rules that have been set up. NGINX receives the response from the backend once it has processed the request. The response is then sent to the client by NGINX, which encrypts the identity of the backend server.

This guide will help you configure NGINX as a proxy for your Artifactory setup, check it out.

Prerequisites Before Setup

  • Use a server that is running a Unix-like operating system, such as Linux or macOS.
  • Verify that you have sudo or root access.
  • Understand how to use the command line
  • Ensure that the server can handle your workload with its CPU and RAM.
  • During setup, maintain a stable internet connection.
  • Set up your firewall so that traffic on ports 80 and 443 is permitted.
  • To access your server, use an IP address or a domain name.

Installing NGINX on Raspberry Pi

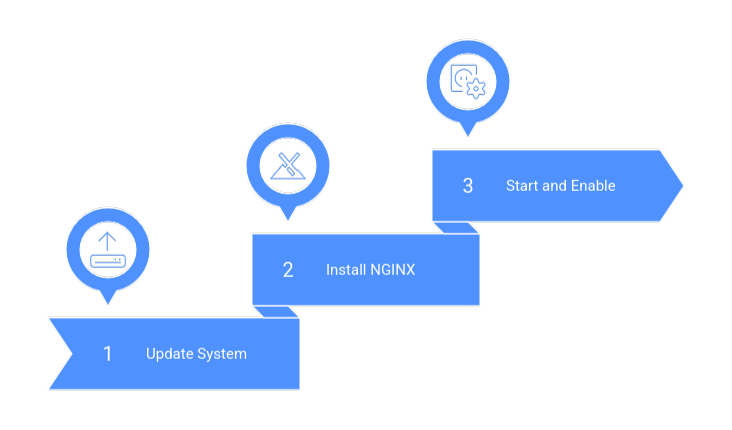

Here are three simple steps to install NGINX on a Raspberry Pi:

  1. Update your system:
sudo apt update && sudo apt upgrade
  1. sudo apt install nginx
sudo apt install nginx
  1. Start and enable NGINX:
sudo systemctl start nginx
sudo systemctl enable nginx

NGINX Reverse Proxy Raspberry Pi Setup Guide

Verifying NGINX Installation

  1. Check if NGINX is running:
sudo systemctl status nginx

If you’re not using systemd, use:
sudo service nginx status
  1. Check the NGINX version:
nginx -v
  1. Test in browser or terminal:

In terminal:

curl localhost

Alternatively, you can open your browser and view the welcome page at http://localhost.

Configuring NGINX as a Reverse Proxy

In order to set up NGINX as a reverse proxy, follow these easy steps:

  1. Verify that NGINX is set up on your computer:
sudo apt update
sudo apt install nginx
  1. Go to /etc/nginx/sites-available/ and open or create a configuration file:
sudo nano /etc/nginx/sites-available/reverse-proxy
  1. Enter your real values in place of the domain and backend IP:
server {
listen 80;
server_name yourdomain.com;
location / {
proxy_pass http://backend_server_ip:port;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
}
}
  1. Connect sites-enabled to the configuration file:
sudo ln -s /etc/nginx/sites-available/reverse-proxy /etc/nginx/sites-enabled/
  1. Verify for syntax mistakes and try again:
sudo nginx -t
sudo systemctl reload nginx
  1. Ensure that your firewall permits ports such as 80 (HTTP) or 443 (HTTPS).

Want to secure a NGINX reverse proxy with LDAP? Our expert article shows you how.

[Need assistance with a different issue? Our team is available 24/7.]

Conclusion

In conclusion, by following this NGINX reverse proxy Raspberry Pi guide, you will learn how to create a small, powerful server. With just a few easy actions, you can effectively manage web traffic, enhance security, and scale your projects. Moreover, NGINX offers an ideal solution for Raspberry Pi scenarios because it consumes minimal resources.

In brief, our Support Experts demonstrated how to fix the “554 5.7.1 : Relay access denied” error.
